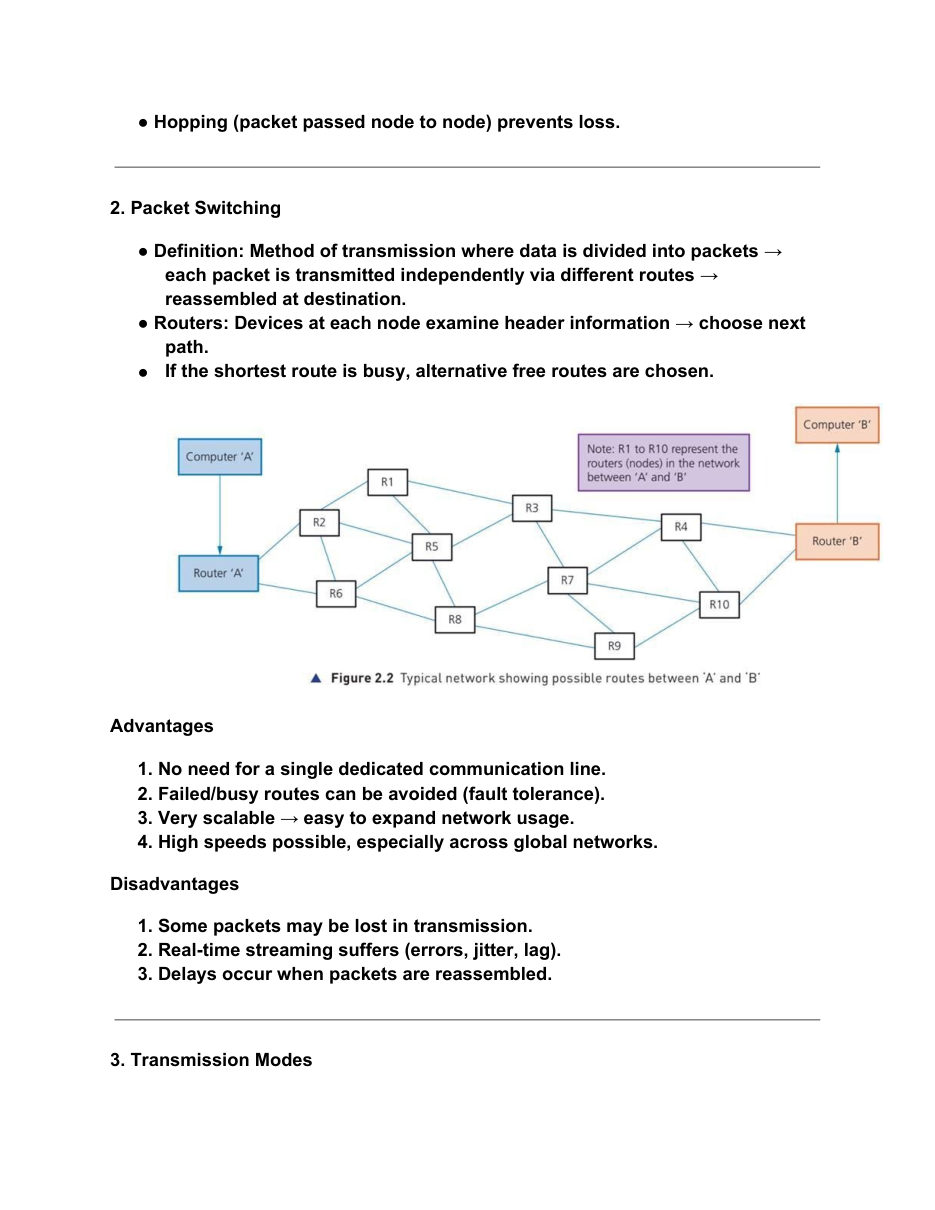

● Hopping (packet passed node to node) prevents loss.
2. Packet Switching
● Definition: Method of transmission where data is divided into packets →
each packet is transmitted independently via different routes →
reassembled at destination.
● Routers: Devices at each node examine header information → choose next
path.
If the shortest route is busy, alternative free routes are chosen.
Advantages
1. No need for a single dedicated communication line.
2. Failed/busy routes can be avoided (fault tolerance).
3. Very scalable → easy to expand network usage.
4. High speeds possible, especially across global networks.
Disadvantages
1. Some packets may be lost in transmission.
2. Real-time streaming suffers (errors, jitter, lag).
3. Delays occur when packets are reassembled.
3. Transmission Modes
