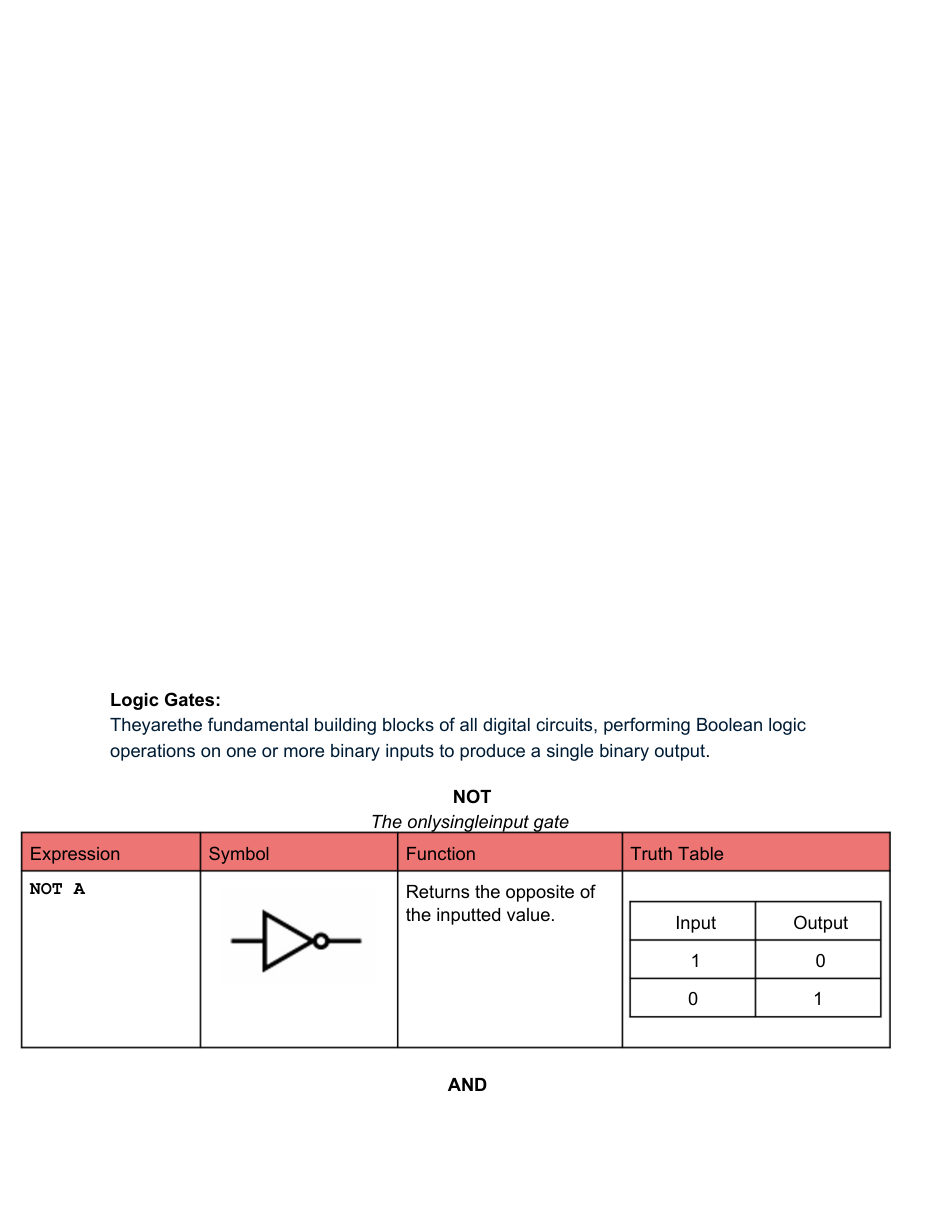

Logic Gates:
Theyarethe fundamental building blocks of all digital circuits, performing Boolean logic
operations on one or more binary inputs to produce a single binary output.
AND
NOT
The onlysingleinput gate
Expression
Symbol
Function
Returns the opposite of
the inputted value.
Input
1
0
Truth Table
Output
0
1
NOT A
