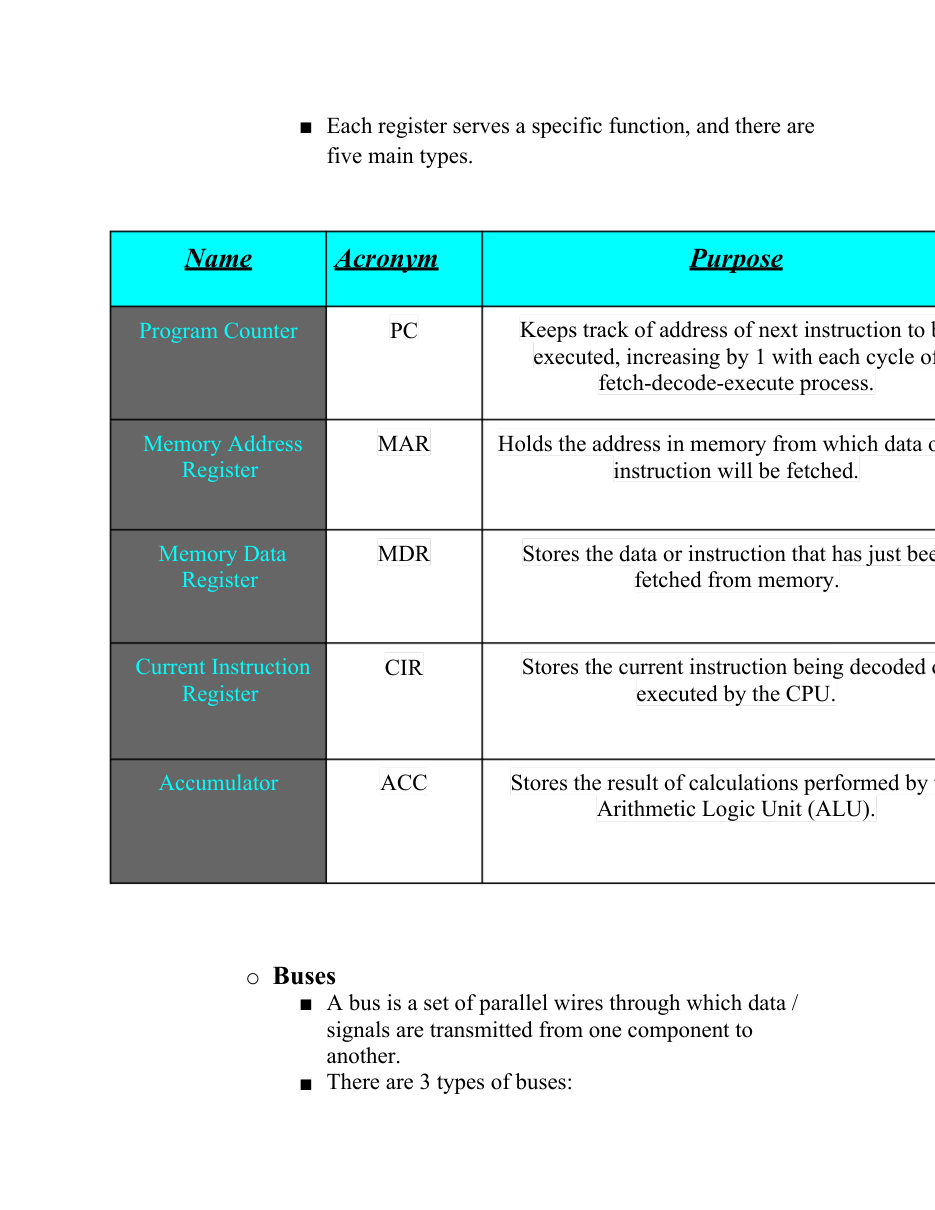

Page image rendered from the stored file at 110 dpi; it sharpens as you zoom. Outlines are placed from each region’s stored position on the page (612 × 792 pt).
readable
Source of this text: embedded text layer. The better of the embedded text and OCR is kept.
■
Each register serves a specific function, and there are
five main types.
Name
Acronym
Purpose
Program Counter
PC
Keeps track of address of next instruction to b
executed, increasing by 1 with each cycle of
fetch-decode-execute process.
Memory Address
Register
MAR
Holds the address in memory from which data o
instruction will be fetched.
Memory Data
Register
Stores the data or instruction that has just bee
fetched from memory.
MDR
Current Instruction
Register
CIR
Stores the current instruction being decoded o
executed by the CPU.
Accumulator
ACC
Stores the result of calculations performed by t
Arithmetic Logic Unit (ALU).
○ Buses
A bus is a set of parallel wires through which data /
signals are transmitted from one component to
another.
There are 3 types of buses:
■
■
