Aitchison College Academic Resources.

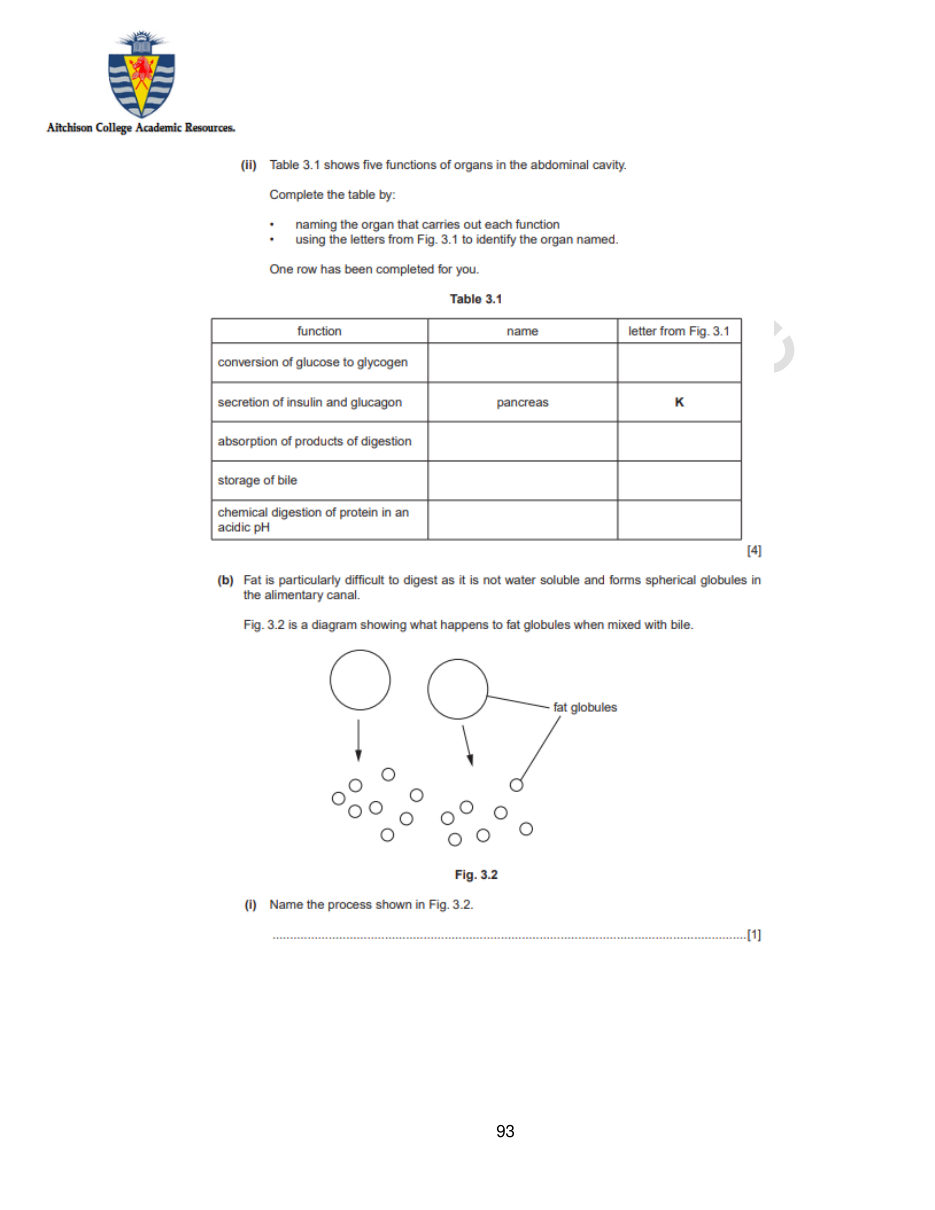

(ii) Table 3.1 shows five functions of organs in the abdominal cavity.
Complete the table by:
* naming the organ that carries out each function
* using the letters from Fig. 3.1 to identify the organ named.
One row has been completed for you.
Table 3.1
function name letter from Fig. 3.1
conversion of glucose to glycogen
secretion of insulin and glucagon pancreas K
absorption of products of digestion
storage of bile
chemical digestion of protein in an
acidic pH
[4]
(b) Fat is particularly difficult to digest as it is not water soluble and forms spherical globules in
the alimentary canal.
Fig. 3.2 is a diagram showing what happens to fat globules when mixed with bile.
C) =a
0%,
oO Oo
one)
fe) 0 Oo O
O
Fig. 3.2
(i) Name the process shown in Fig. 3.2.
(1]
93
